Portwell Fanless Embedded-PC WEBS-5491 is powered by Intel® Atom® quad-core processor. Despite its fanless and cable-less design, the system can support wide temperature ranging from -30 to 70 degrees. Expandable I/O combination design makes it more flexible for various environments. By utilizing the low power technology, WEBS-5491 is an ideal platform for factory automation and transportation applications.

Categories: , Brand:

Description

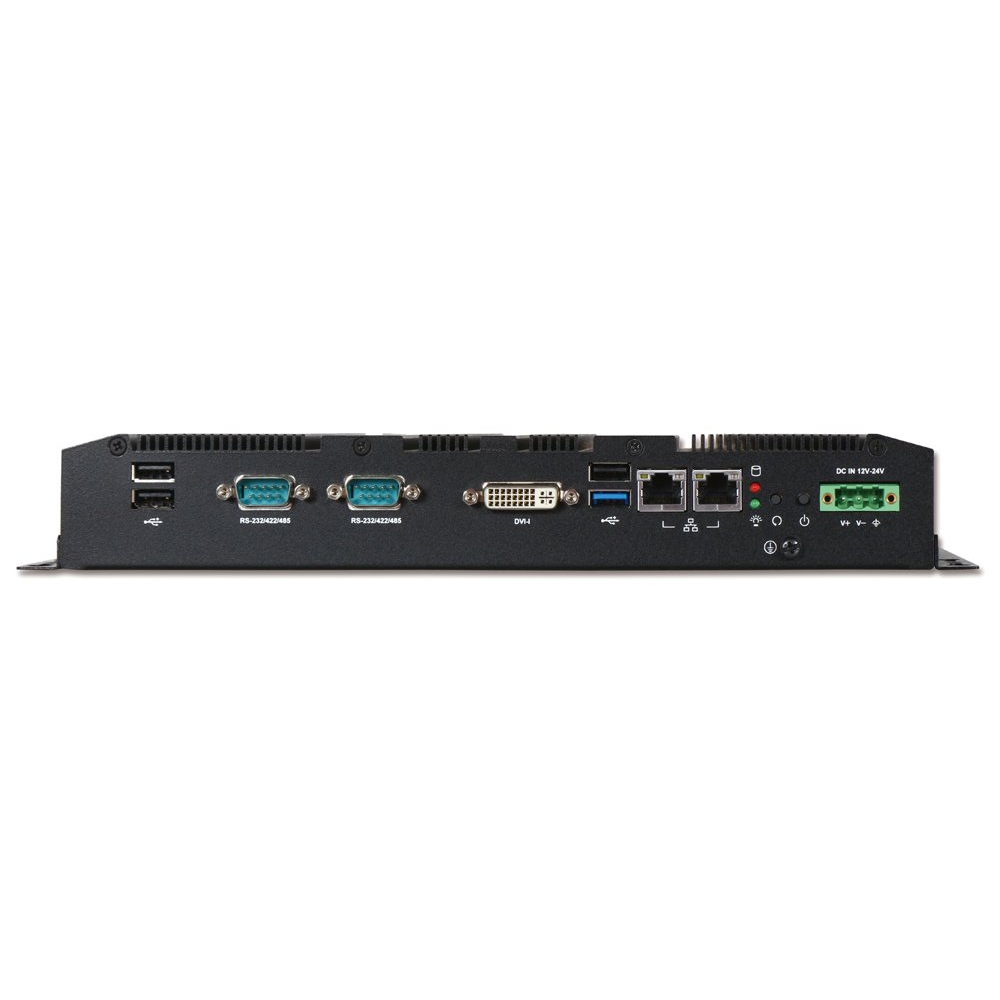

Embedded Rugged Fan-less PC with Intel® Atom® E3845 Specific Form Factor Board

Features :



  • Latest Intel® Atom® embedded processor with low power and quad-core technology
  • Fan-less and cable-less design with wide temperature support (-30°C ~ 70°C)
  • Single SO-DIMM socket up to 8GB DDR3L Memory
  • 1x 2.5” SATA HDD/SSD, 1x CF & 1x SD card
  • 2x Gigabit Ethernet, 1x USB3.0, 3x USB2.0, 2x RS-232/422/485 (selectable by BIOS)
  • 1x DVI-I (DVI-D & VGA signal included)
  • 1x Antenna hole for WiFi or 3G module
  • Expandable I/O combinations for diverse applications
  • Support wide DC 12V ~ 24V input
  • Wall, DIN rail mounting are supported
  • OP Vibration: 5Grms/10~500Hz
  • OP Shock: 50G, 11msec
  • IP40 Rating
