WEBS-3392

WEBS-3392

Portwell Fanless Embedded-PC WEBS-3392 is very compact and come without a fan. By using the latest Intel® Atom® processor E3800 family with up to four CPU cores, the embedded system is suitable as an inexpensive entry-level model for diverse applications in plant engineering, power engineering, transportation & logistics, as well as display control and gateway.

Categories: , Brand:

Description

Embedded Rugged Fan-less PC with Intel® Atom® E3845/J1900 based Mini-ITX Board

Features :



  • Latest Intel® Atom® embedded processor with low power and quad core technology
  • Dual channel SO-DIMM socket up to 16GB DDR3L Memory
  • 1x 2.5” SATA HDD/SSD, 1x mSATA

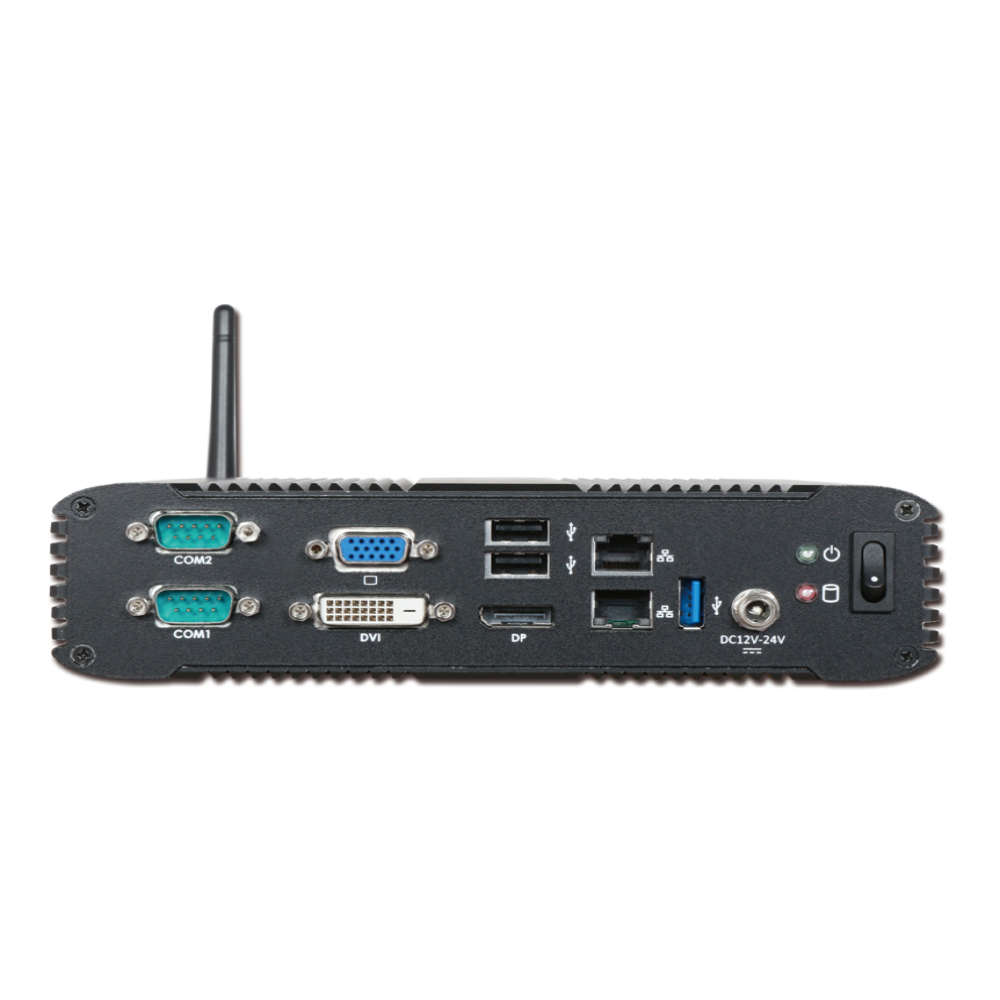

  • 1x RS-232/422/485, 3x RS-232, 1x USB3.0, 3x USB2.0, 2x Gigabit Ethernet Port
  • Triple Display by DVI-D/VGA/DP
  • 1x Antenna hole for WiFi or 3G module to use
  • 1x Half-size Mini-PCIe socket (support PCIe & USB signal)
  • 1x Full-size Mini-PCIe socket (support mSATA)
  • OP Vibration: 5Grms/10~500Hz
  • OP Shock: 50G, 11msec
  • IP40 Rating
